Kernel slave is the system slave used to execute user's tasks. More...

#include "kernel_slave.h"
#include "../../../include/kernel_pkg.h"
#include "../../include/api.h"
#include "../../include/plasma.h"
#include "../../include/services.h"
#include "../../modules/task_location.h"
#include "../../modules/packet.h"
#include "../../modules/communication.h"
#include "../../modules/pending_service.h"
#include "../../modules/local_scheduler.h"
#include "../../modules/utils.h"
#include "../../modules/task_migration.h"

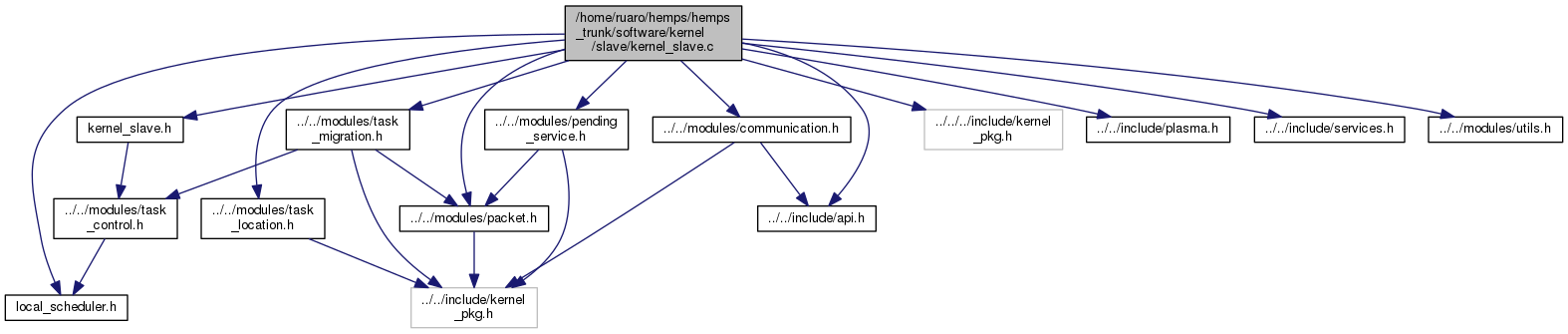

Include dependency graph for kernel_slave.c:

Functions
void	send_task_terminated (TCB *terminated_task)

void	send_task_allocated (TCB *allocated_task)

void	send_message_delivery (int producer_task, int consumer_task, int consumer_PE, Message *msg_ptr)

void	send_task_real_time_change (TCB *tcb_ptr)

void	send_slack_time_report ()

void	send_update_task_location (unsigned int target_proc, unsigned int task_id, unsigned int new_task_location)

void	send_message_request (int producer_task, int consumer_task, unsigned int producer_PE, unsigned int sourcePE)

void	write_local_msg_to_task (TCB task_tcb_ptr, int msg_lenght, int msg_data)

int	Syscall (unsigned int service, unsigned int arg0, unsigned int arg1, unsigned int arg2)

int	handle_packet (volatile ServiceHeader *p)

void	Scheduler ()

void	OS_InterruptServiceRoutine (unsigned int status)

unsigned int	OS_InterruptMaskClear (unsigned int Mask)

unsigned int	OS_InterruptMaskSet (unsigned int Mask)

void	OS_Idle ()

int	main ()

Variables
unsigned int	net_address
	Store the current XY address.

unsigned int	schedule_after_syscall
	Signals the syscall function (assembly implemented) to call the scheduler after the syscall.

unsigned int	cluster_master_address
	Store the cluster master XY address.

unsigned int	last_idle_time
	Store the last idle time duration.

unsigned int	total_slack_time
	Store the total of the processor idle time.

TCB	idle_tcb
	TCB pointer used to run idle task.

TCB *	current
	TCB pointer used to store the current task executing into processor.

Message	msg_write_pipe
	Message variable which is used to copy a message and send it by the NoC.

Detailed Description

Kernel slave is the system slave used to execute user's tasks.

HEMPS VERSION - 8.0 - support for RT applications

Distribution: June 2016

Edited by: Marcelo Ruaro - contact: marce.nosp@m.lo.r.nosp@m.uaro@.nosp@m.acad.nosp@m..pucr.nosp@m.s.br

Research group: GAPH-PUCRS - contact: ferna.nosp@m.ndo..nosp@m.morae.nosp@m.s@pu.nosp@m.crs.b.nosp@m.r

kernel_slave is the core of the OS running into the slave processors. Its job is to runs the user's task. It communicates whit the kernel_master to receive new tasks and also notifying its finish. The kernel_slave file uses several modules that implement specific functions

Function Documentation

int handle_packet ( volatile ServiceHeader * p )

Handles a new packet from NoC

void OS_Idle ( )

Idle function

unsigned int OS_InterruptMaskClear ( unsigned int Mask )

Clear a interruption mask

Parameters

Mask	Interruption mask clear

unsigned int OS_InterruptMaskSet ( unsigned int Mask )

Set a interruption mask

Parameters

Mask	Interruption mask set

void OS_InterruptServiceRoutine ( unsigned int status )

Function called by assembly (into interruption handler). Implements the routine to handle interruption in HeMPS

Parameters

status Status of the interruption. Signal the interruption type

void Scheduler ( )

Generic task scheduler call

void send_message_delivery	(	int	producer_task,
		int	consumer_task,
		int	consumer_PE,
		Message *	msg_ptr
	)

Assembles and sends a MESSAGE_DELIVERY packet to a consumer task located into a slave processor

Parameters

producer_task	ID of the task that produce the message (Send())
consumer_task	ID of the task that consume the message (Receive())
msg_ptr	Message pointer

void send_message_request	(	int	producer_task,
		int	consumer_task,
		unsigned int	producer_PE,
		unsigned int	sourcePE
	)

Assembles and sends a MESSAGE_REQUEST packet to producer task into a slave processor

Parameters

producer_task	Producer task ID (Send())
consumer_task	Consumer task ID (Receive())
producer_PE	Processor address of the producer task
sourcePE	Processor address of the consumer task

void send_slack_time_report ( )

Assembles and sends a SLACK_TIME_REPORT packet to the master kernel

void send_task_allocated ( TCB * allocated_task )

Assembles and sends a TASK_ALLOCATED packet to the master kernel

Parameters

allocated_task Allocated task TCB pointer

void send_task_real_time_change ( TCB * tcb_ptr )

Assembles and sends a REAL_TIME_CHANGE packet to the master kernel

Parameters

tcb_ptr TCB pointer of the task that change its real-time parameters

void send_task_terminated ( TCB * terminated_task )

Assembles and sends a TASK_TERMINATED packet to the master kernel

Parameters

terminated_task Terminated task TCB pointer

void send_update_task_location	(	unsigned int	target_proc,
		unsigned int	task_id,
		unsigned int	new_task_location
	)

Assembles and sends a UPDATE_TASK_LOCATION packet to a slave processor. Useful because task migration

Parameters

target_proc	Target slave processor which the packet will be sent
task_id	Task ID that have its location updated
new_task_location	New location (slave processor address) of the task

int Syscall	(	unsigned int	service,
		unsigned int	arg0,
		unsigned int	arg1,
		unsigned int	arg2
	)

Syscall handler. It is called when a task calls a function defined into the api.h file

Parameters

service	Service of the syscall
arg0	Generic argument
arg1	Generic argument
arg2	Generic argument

void write_local_msg_to_task	(	TCB *	task_tcb_ptr,
		int	msg_lenght,
		int *	msg_data
	)

Useful function to writes a message into the task page space

Parameters

task_tcb_ptr	TCB pointer of the task
msg_lenght	Lenght of the message to be copied
msg_data	Message data
